Hoses

Pro Asia Design manufactures high pressure and low-pressure hoses. We procure raw tubes from approved suppliers that meet or exceed CE and UKCA standards. Swaged end fittings are machined to Pro Asia Design’s exacting standards.

Continuous inspection throughout the assembly process and a functional final inspection ensure that end users are provided the best quality air hoses on the market.

Hoses

Pro Asia Design manufactures high pressure and low-pressure hoses. We procure raw tubes from approved suppliers that meet or exceed CE and UKCA standards. Swaged end fittings are machined to Pro Asia Design’s exacting standards.

Continuous inspection throughout the assembly process and a functional final inspection ensure that end users are provided the best quality air hoses on the market.

Low pressure (LP)

Low pressure hoses are used to supply compressed air from the tank cylinder to regulators for breathing air at intermediate pressure.

First stage regulators customarily come with 4 low pressure port holes to connect a second stage regulator hose.

High pressure (HP)

High pressure hoses are connected to analog/digital instrumentation to accurately monitor remaining air pressure in tank cylinders.

First stage regulators can come equipped with either one or two HP port holes to connect instrumentation and transmitters for wireless connection to dive computers/consoles.

Rubber

Rubber hoses have been the traditional choice for safety use due to the natural strength and durability of industrial strength synthetic rubber.

Braided

Braided hoses are the newer entry to hose materials, offering a lightweight and more flexible outer weaving that replaces traditional rubber.

lowpressuredetail3
lowPressureRubber
lowpressuredetail2
lowpressurerubberdetail1
yellowlowpressure3
yellowlowpressure2
yellowlowpressure
previous arrow
next arrow
lowpressuredetail3
lowPressureRubber
lowpressuredetail2
lowpressurerubberdetail1
yellowlowpressure3
yellowlowpressure2
yellowlowpressure
previous arrow
next arrow

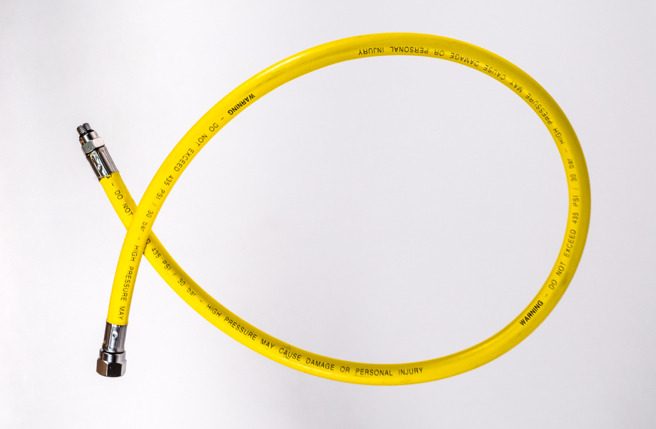

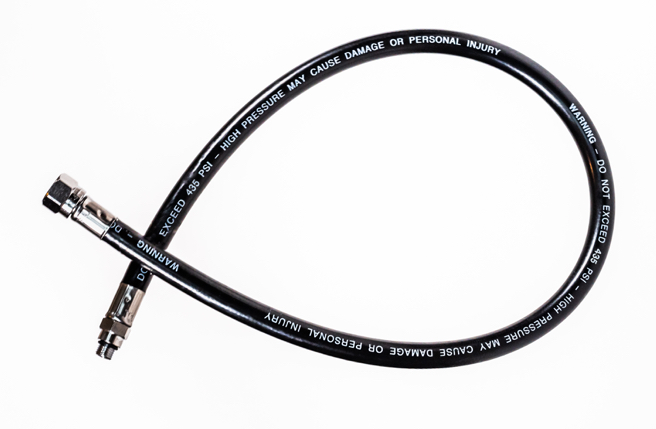

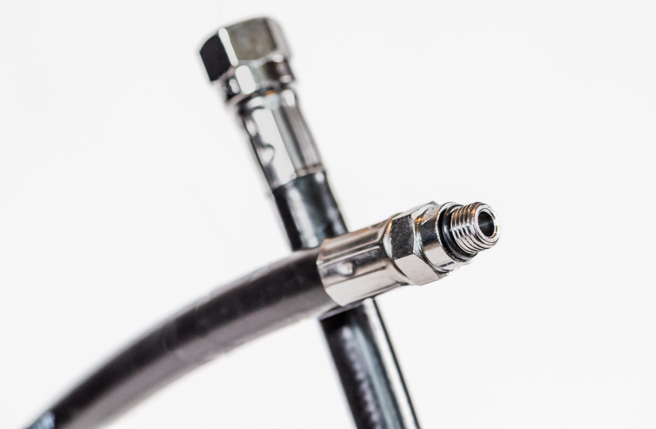

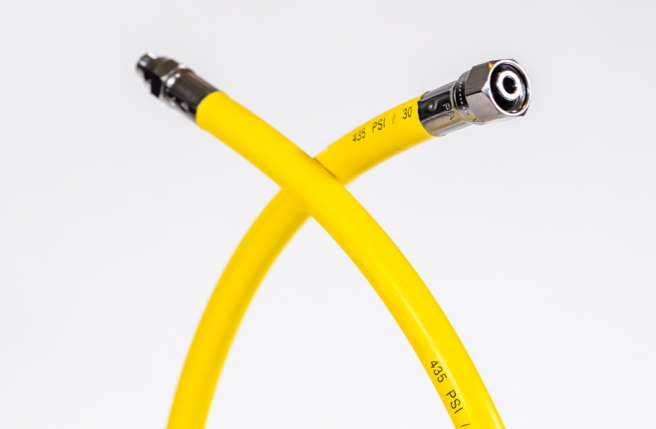

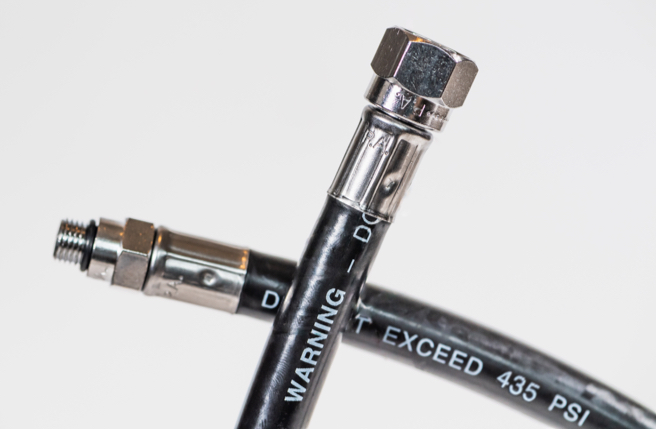

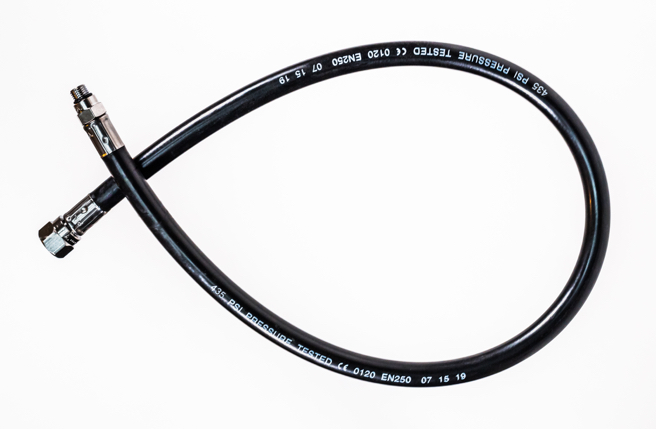

Low pressure rubber hose

  • CE 0598:EN 250 and UKCA 0120:EN250 certified
  • Working pressure 435 PSI / 30 BAR
  • Minimum burst pressure 2,000 PSI / 138 BAR
  • Single braid Kevlar reinforced inner layer with industrial rubber outer layer
  • Chrome-Nickel plated brass swivels and fittings
  • Male End 3/8″-24 UNF-2A; Female end 9/16″-18 UNF-2B

Options

  • Multiple sizing options available
  • Available in black or yellow
highpressure3
highpressure2
highPressure1
highpressure4
previous arrow
next arrow
highpressure3
highpressure2
highPressure1
highpressure4
previous arrow
next arrow

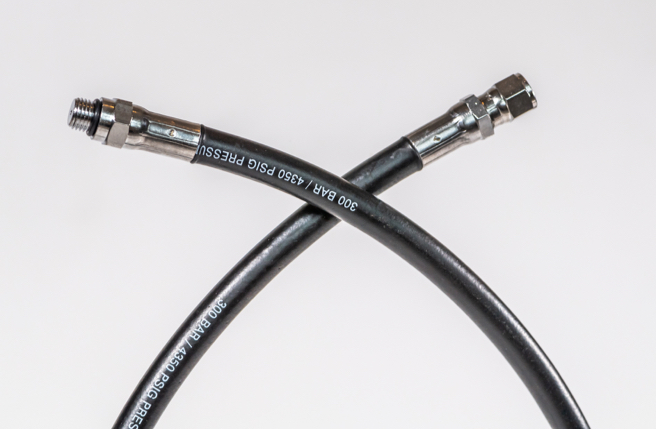

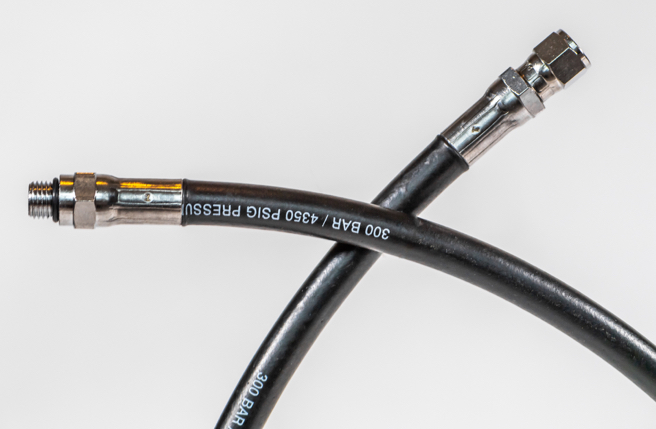

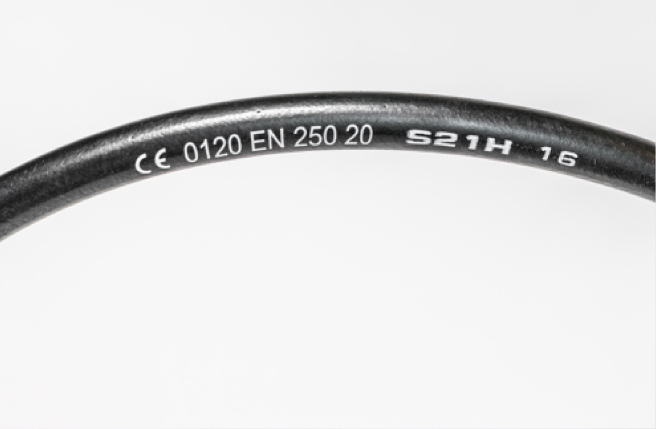

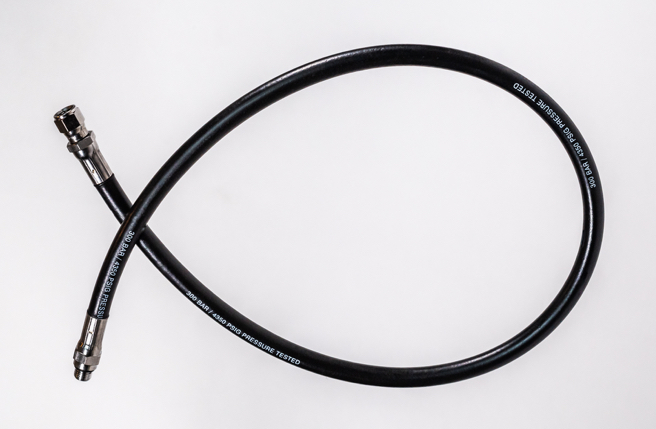

High pressure rubber hose

  • CE 0598:EN 250 and UKCA 0120:EN250 certified
  • Working pressure 4,350 PSI / 300 BAR
  • Minimum burst pressure 18,000 PSI / 1,240 BAR
  • Double-braided Kevlar reinforced inner layer with industrial rubber outer layer
  • Chrome-nickel plated brass swivels and fittings
  • Male end 7/16″-20 UNF-2A; Female end 7/16″-20 UNF-2B

Options

  • Multiple sizing options available
  • Available in black
lowpressurebraided3
lowpressurebraided1
lowpressurebraided2
lowpressurebraided8
lowpressurebraided5
lowpressurebraided7
lowpressurebraided4
lowpressurebraided6
previous arrow
next arrow
lowpressurebraided3
lowpressurebraided1
lowpressurebraided2
lowpressurebraided8
lowpressurebraided5
lowpressurebraided7
lowpressurebraided4
lowpressurebraided6
previous arrow
next arrow

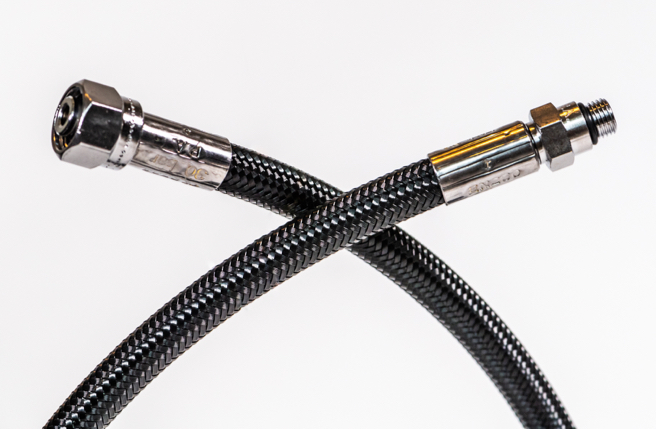

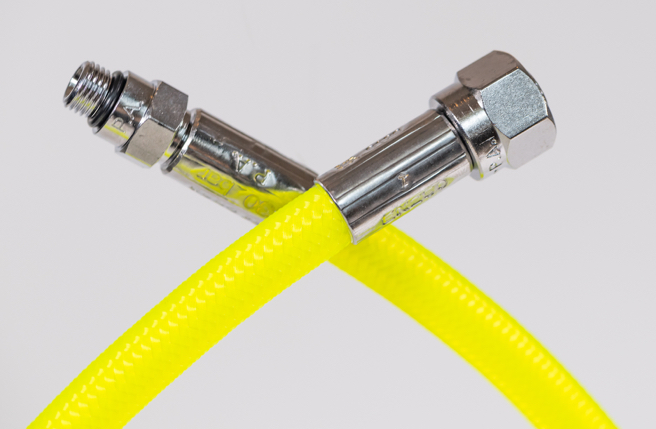

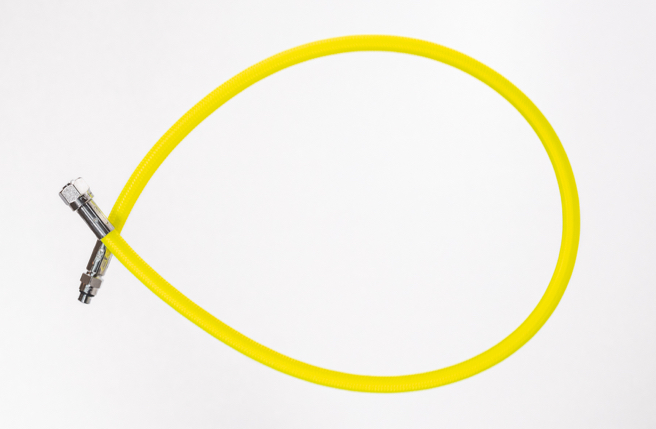

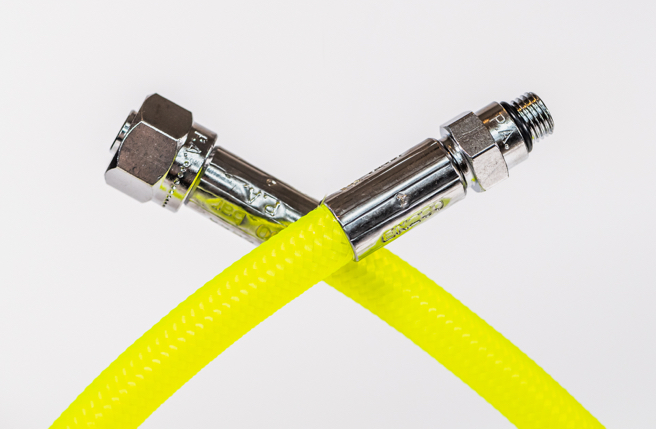

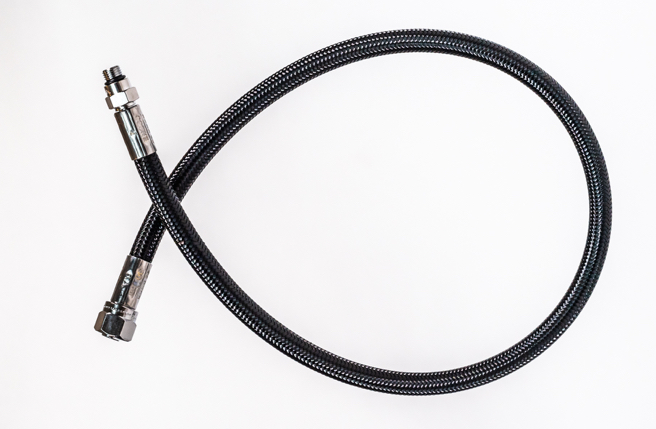

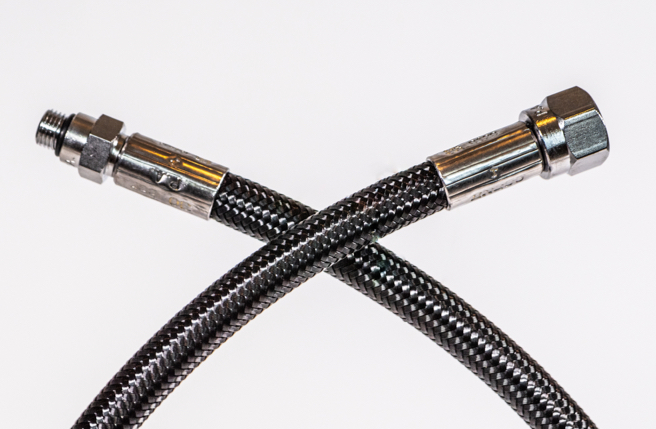

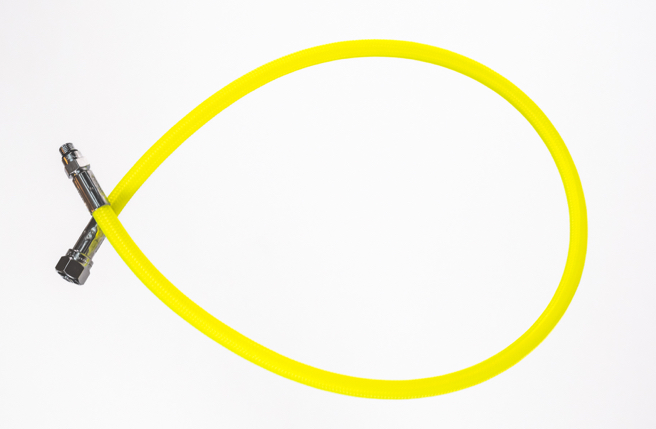

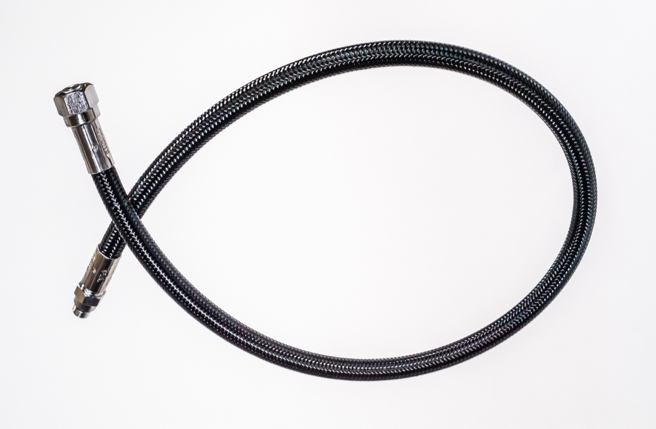

Low pressure braided hose

  • CE 0598:EN 250 and UKCA 0120:EN250 certified
  • Working pressure 435 PSI / 30 BAR
  • Minimum burst pressure 2,000 PSI / 138 BAR
  • Polyurethane compound in-liner with a polyester thread inner braid and nylon thread outer braid
  • Chrome-Nickel plated brass swivels and fittings
  • Male End 3/8″-24 UNF-2A; Female end 9/16″-18 UNF-2B

Options

  • Multiple sizing options available
  • Available in black, white, or yellow
highpressurebraided2
highpressurebraided
previous arrow
next arrow
highpressurebraided2
highpressurebraided
previous arrow
next arrow

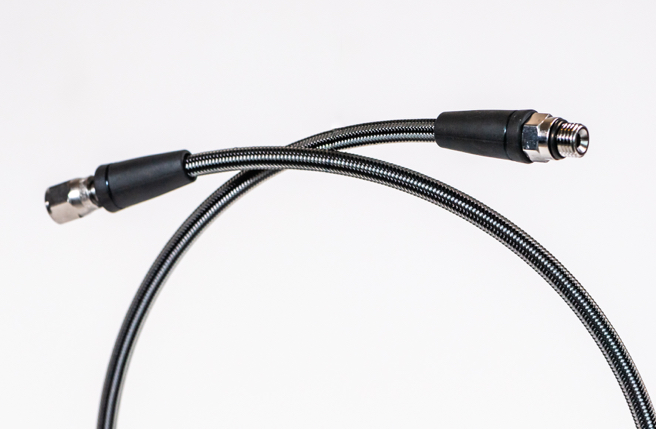

High pressure braided hose

  • CE 0598:EN 250 and UKCA 0120:EN250 certified
  • Working pressure 4,350 PSI / 300 BAR
  • Minimum burst pressure 18,000 PSI / 1,240 BAR
  • Polyurethane compound in-liner with a polyester thread inner braid and nylon thread outer braid
  • Chrome-Nickel plated brass swivels and fittings
  • Male end 7/16″-20 UNF-2A; Female end 7/16″-20 UNF-2B

Options

  • Multiple sizing options available
  • Available in black
